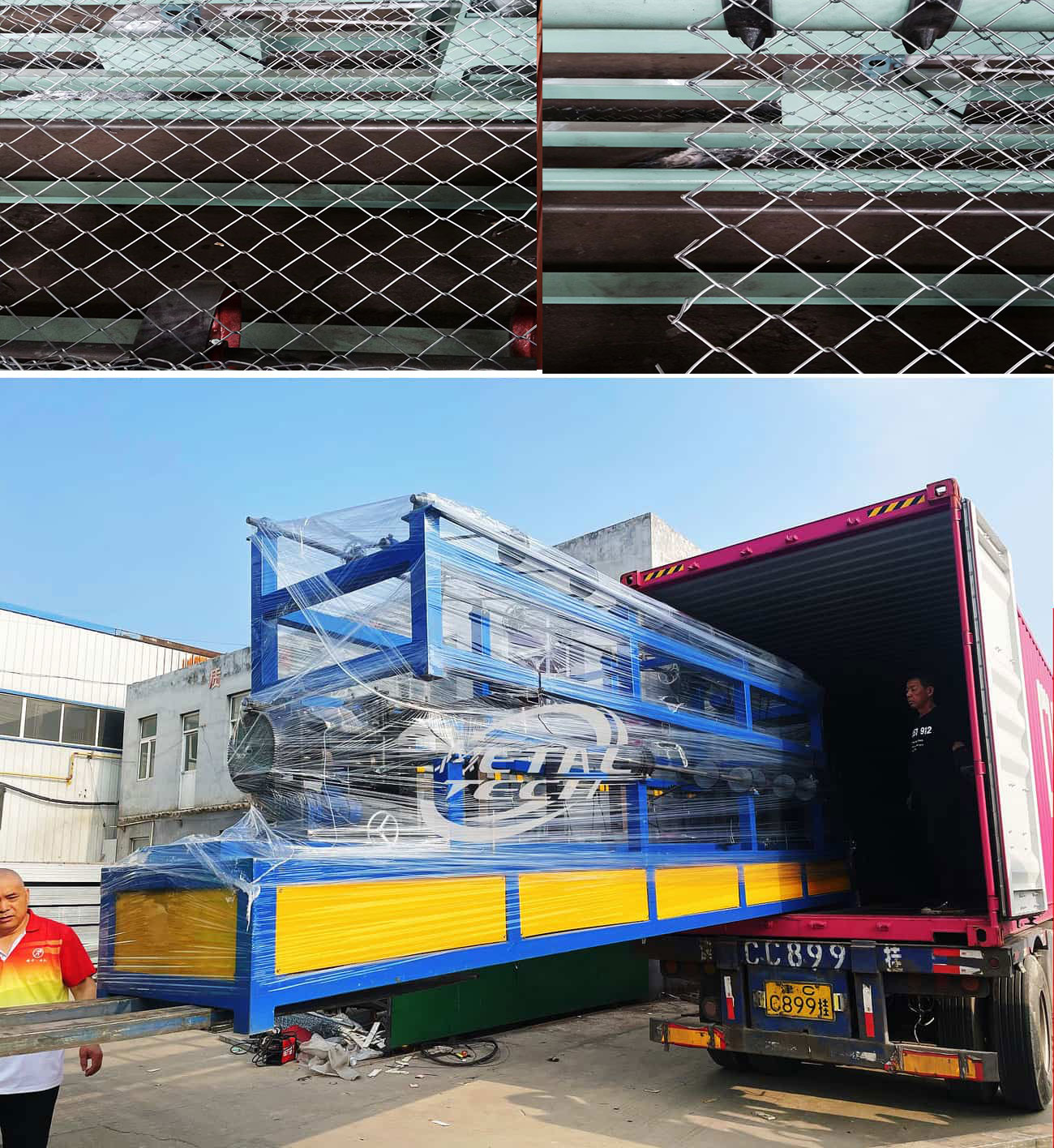

Metal Tech double wire chain link fence machine with high capacity, but it request high quality and soft wire. One set double wire chain link fence machine capacity is 2 times that of the single wire chain link fence machine.
Metal Tech double wire chain link fence machine easy operation, running stable and long lifetime. Metal Tech double wire chain link fence with servo motor making the wire waving type with a different kind of mold then two waving wire linking together Also our net side locking device is highly effective and the shrinking machine can shrinking the net for transportation. Metal Tech offers 2 to 4 meters different widths for client selection.
Netting width Specification | 2M | 3M | 4M |
No. of input wire | 2 | ||
Capacity(based on mesh size 50mm*50mm) | 120-180㎡/h | ||
Power supply | 380v 50Hz(60Hz can be custom-made) | ||
Speed of the axle of shaped knife | 200-500rpm | ||
Suitable wire to the machine | Galvanized wire, PVC wire, steel wire | ||
Diameter of wire | 1.6-4.0mm(depend on the mesh opening size) | ||
Power consumption | a total of 9.34kw, 5 motors(based on 4M, it relates to the dia. of wire, and the power can be custom-made.) | ||
Mesh size | 25*25mm-80*80mm (if the mesh size is 25*25mm, the steel wire must be very uniform) | ||
Weight of equipment | 3.0t | 3.5t | 4.0t |
Main machine outer size | 4.8m*1.2m*2.3m | 5.5m*1.2m*2.3m | 6.8m*1.2m*2.3m |
Auxiliary machine outer size | 3.0m*1.5m*1.1m | 4.0m*1.5m*1.1m | 5.0m*1.5m*1.1m |
Color of machine | can be custom-made | ||
Metal tech double wire chain link fence machine use high-quality material parts, such as NSK bearing, PARKER hydraulic system, quenching and brazing gear, international brand electric parts etc, strict quality management all these guarantee superior quality and long performance chain link fence machine life.

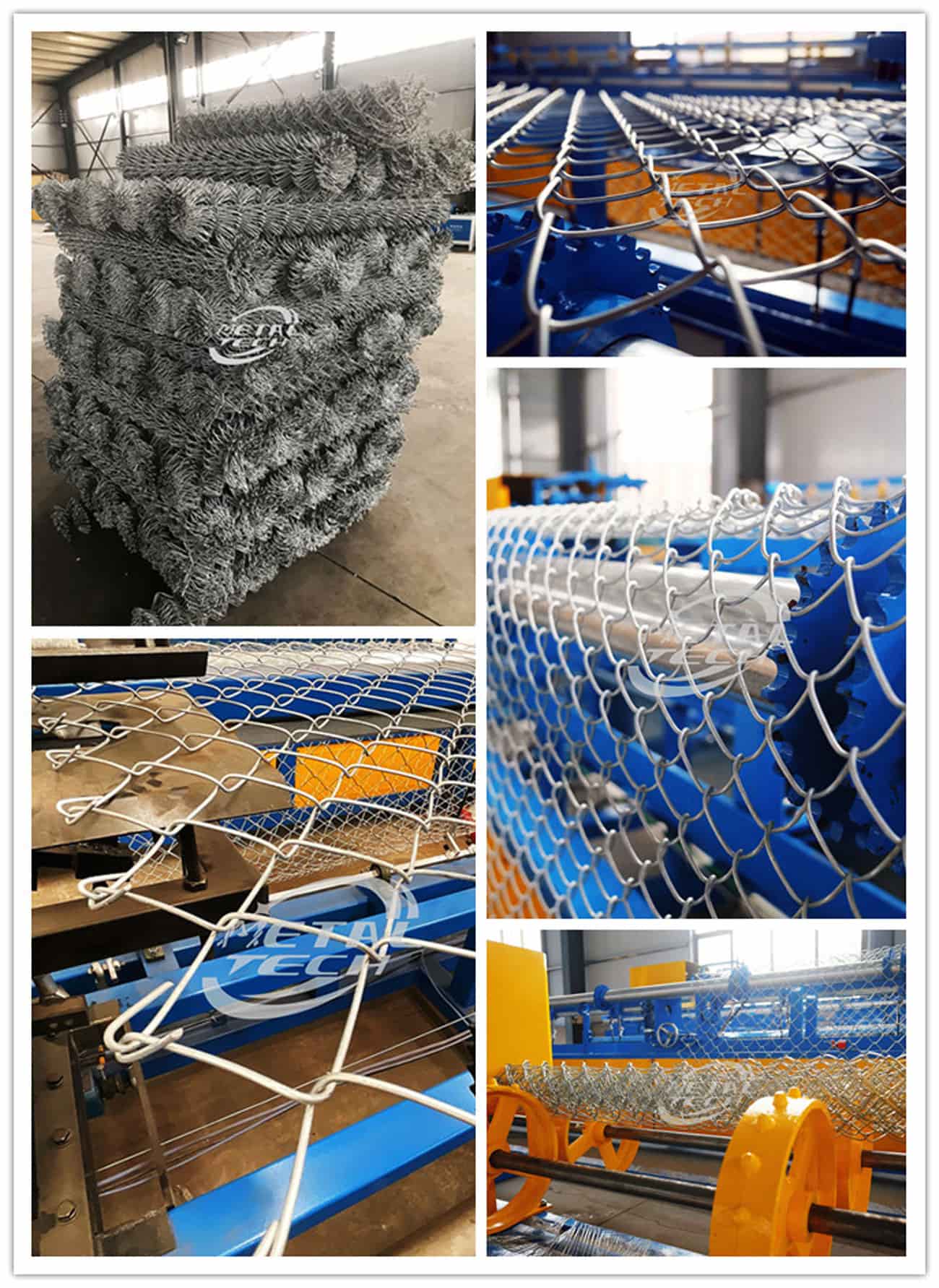

Wire Pay off→ Wire mold→ Waving wire→ Linking→ Lockside→ Winding
