Electric Annealing Furnace

Name: Electric Annealing Furnace
Brand: Hangzhou Metal Tech Co., Ltd.

Metal tech Annealing furnace is one of the heat treatment equipment in mechanical industry. Which put the wire or metal parts in different heating furnaces, slowly heat them to a certain temperature, keep them for a period of time, and then cool them at an appropriate speed (usually natural cooling, sometimes controlled cooling).

According to different energy sources, it can be classified into electric energy, gas energy and oil energy. Users can choose according to their own situation. This is the annealing furnace of electric energy.

GET A QUOTE

Specifications of Electric Annealing Furnace

Furnace specification	Power supply: Electricity
	Capacity: 2.0T/8hours
	Power: 70kw
Furnace Body	5mm Q235 board furnace shell
	Lightweight firebrick Internal liner
	Holocellulose alumina silicate keeping temperature
	Heating element: Cr20Ni80
Furnace Tube	Thickness: 8mm,
	Dia.: 800mm,
	high: 1200mm
	Material: Stainless Steel
Working Process of Annealing Wire	a. Two hours heating to 650°C-700°C
	b. Keeping Temperature 650°C-700°Cfor 2 hours
	c. Keep the tube in the furnace, cooling for 4 hours till the temperature is about 300°C
	d. Taking out of the tube put another one in
	e. When the tube temperature is below 170°C, take the wire out

Advantages of Electric Annealing Furnace

Metal tech Annealing furnace use high-quality material parts, strict quality management all these guarantee superior quality and long performance Annealing furnace life.

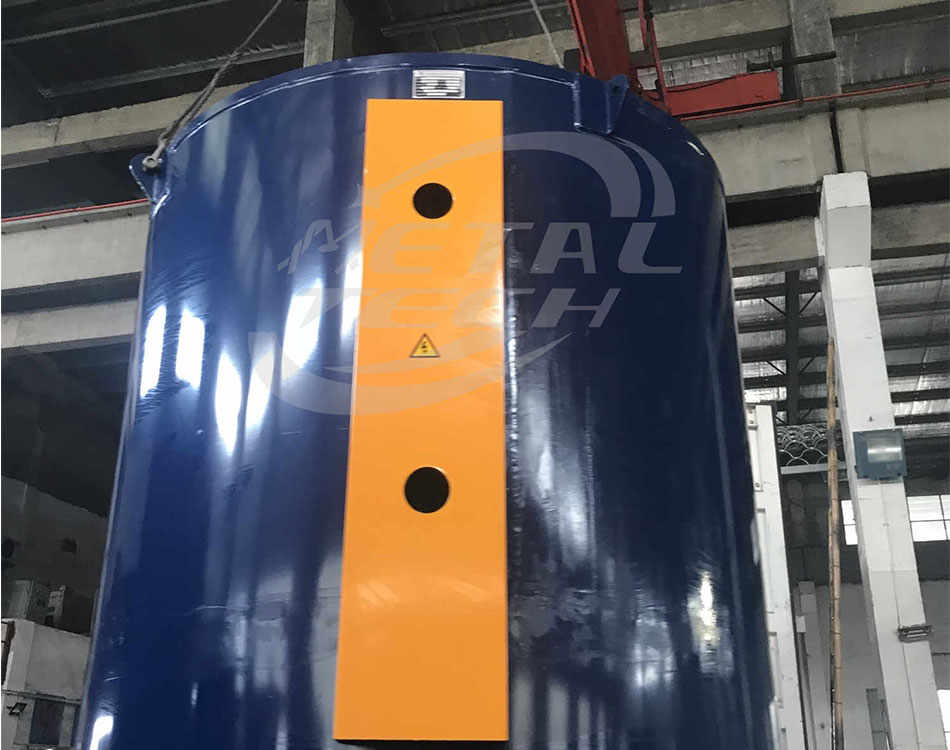

Details of Electric Annealing Furnace
